Deep Water Hyperbaric Test Pressure Chamber

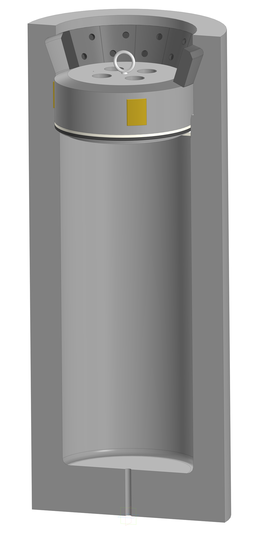

pressure_chamber_render

HC6000 Features

Locking and unlocking takes between 2 to 5 minutes
Compliant with the EU Pressure Equipment Directive (PED). An EU Declaration of Conformity will be provided. No involvement of a notified body is required for the operator (up to 500 bar).
All testing equipment can be secured to the lid for easy loading and unloading or folded separately
Multiple penetrations for tooling, electrical feed-throughs and pressure control hardware, camera and lighting
Lid lifting mechanism and guided closure alignment system
Low maintenance requirements, long service life
Vertical orientation minimises the floor footprint (horizontal orientation is also possible)
Only for stationary use with all the necessary precations

HC6000 Specifications

Specification	Details
Pressure	1-600 bar (6000 meters)
Closure Time	3-5 min
Locking mechanism	Option 1. Bolting system Option 2. Self-locking chocks; providing a sound mechanical safety feature preventing accidental removal
Pressurisation / de-pressurisation	1-5 min
Pressure control system	Manometer and safety valve or more advanced solutions
Dwell time	up to 30 days
Bore diameter	422 mm
Bore depth	800 mm to 2500 mm
Seal Type	O Ring with PTFE back-up ring
Ports	1 fill/drain, 1 purge + customer specific
Options	Guided closure alignment system for larger bore vessels Protective box or screen, light, camera, custom tooling
Penetrations	Penetrations for tooling, electrical feed-throughs and pressure control hardware, camera and lighting as per customer’s requirements
Material of Construction	Stainless Steels, Carbon and Alloy Steels
Size	800 x 800 x 1200-3700 cm
Weight	900-2700 kg
Power consumption	3 kW
PED compliance	Compliant

Custom size and pressure? Please let us know your requirements.

## Price and Lead Time The price depends on the maximum pressure and other requirements. The project cost will be well below the usual several hundred thousand euros.
