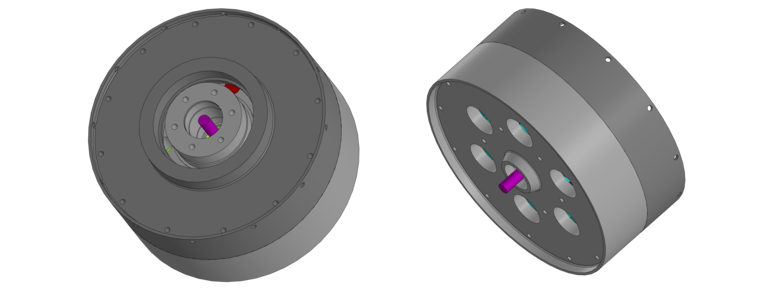

Water-flooded submersible gearhead (gearbox) featuring seal-free operation at up to 6,000 metres. Competitively priced.
Unlike traditional IP68 sealed units, Subsea Formula’s water-flooded design eliminates the primary failure modes of sealed underwater gearheads - seal degradation and pressure compensation failure - while delivering exceptional reliability and efficiency at a fraction of the cost. Internal water equalization eliminates pressure differentials, allowing design without sealed chambers or pressure compensation systems.
The design reduces costs through higher durability, reliability, and low maintenance requirements. The gearheads achieve high efficiency ratings and allows for quiet, smooth operation with minimized vibration levels.
The water-flooded design provides natural cooling, preventing heat buildup and eliminating thermal degradation common in sealed units.
The relatively low rotational inertia makes these gearheads ideal for applications requiring stop/start and reversing operation.
Subsea Formula produces high-quality gearheads and assemblies using extensive production machinery and experienced engineering.
| Specification | Details |
|---|---|
| Depth rating | 3,000 or 6,000 meters |
| IP rating | N/A, the gearhead has a water-flooded design |
| Operating Temperature | 0°C to +38°C, optimized for 0°C to +5°C |
| Max gear ratio | 1:76,755 |
| Motor speed | up 3,000 RPM, upgradable to 7,000 RPM |
| Backlash | zero/low backslash |
| Installation position | vertical, horizontal, or any angle |
| Maintenance | Rinse thoroughly with fresh water after each deployment. No internal servicing required, no oil changes or seal replacements needed |
| Material | 316 steel or titanium |
| Service life | 10,000+ hours for 316 steel |
| Warranty | 1 year. Any defects - replacement unit shipped at no charge |
Below you can find a few examples of gearhead configurations. The final specifications are tailored to meet specific customer requirements.
| Specification | GHS-903 | GHT-903 | GHS-76755 |
|---|---|---|---|
| Gear Ratio | 1:903 | 1:903 | 1:76,755 |
| Output Torque | 2,520 Nm | 2,520 Nm | 214,200 Nm |
| Material | 316 steel | Titanium | 316 steel |
| Size | ⌀200 mm, len 50 mm |
⌀200 mm, len 50 mm |
⌀400 mm, len 1,000 mm |
| Air Weight | 3 kg | 1.5 kg | 600 kg |
| Input | up to 3,000 RPM | up to 3,000 RPM | up to 3,000 RPM |
Configuration options:
A gearhead is also known as a gear reducer, gearbox, or enclosed speed reducer.
Please let us know your requirements
