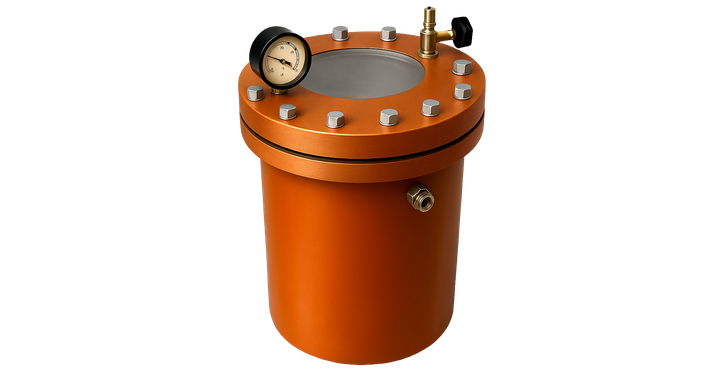

HC30 Hyperbaric test chamber simulates depths up to 300 meters for rigorous validation of underwater equipment and tools
| Specification | Details |
|---|---|
| Pressure | 1-30 bar (300 meters), tested at 45 bar |
| Closure Time | 3-5 min., bolting system |
| Pressurisation / de-pressurisation | Electric pump |
| Pressure control system | Manometer and safety valve |
| Dwell time | up to 10 days |
| Seal Type | O Ring with PTFE back-up ring |
| Ports | 1 fill/drain, 1 purge + customer specific |
| Options | Protective box or screen, light, camera, custom tooling. |
| Penetrations | Penetrations for tooling, electrical feed-throughs and pressure control hardware, camera and lighting as per customer’s requirements |
| Material | 316 stainless steels, carbon and alloy steels |
| Power consumption | Up to 2kW during pressurisation. Additional power may be needed for the customer’s equipment such as cameras, lights, tools, etc. |
| PED compliance | Compliant |
| Specification | Details |
|---|---|
| Bore diameter | 255 mm |
| Bore depth | 710 mm |
| Size | ⌀395 mm, height 874 mm |
| Weight | ~ 400 kg |
| Specification | Details |
|---|---|
| Bore diameter | 255 mm |
| Bore depth | 1210 mm |
| Size | ⌀395 mm, height 1374 mm |
| Weight | ~ 450 kg |
A standard HC30 pressure chamber depth can be extended with 500m and 1000m extension sections. The pressure chamber for non-standard dimensions can be offered, subject to the components availability.
Please let us know your requirements
