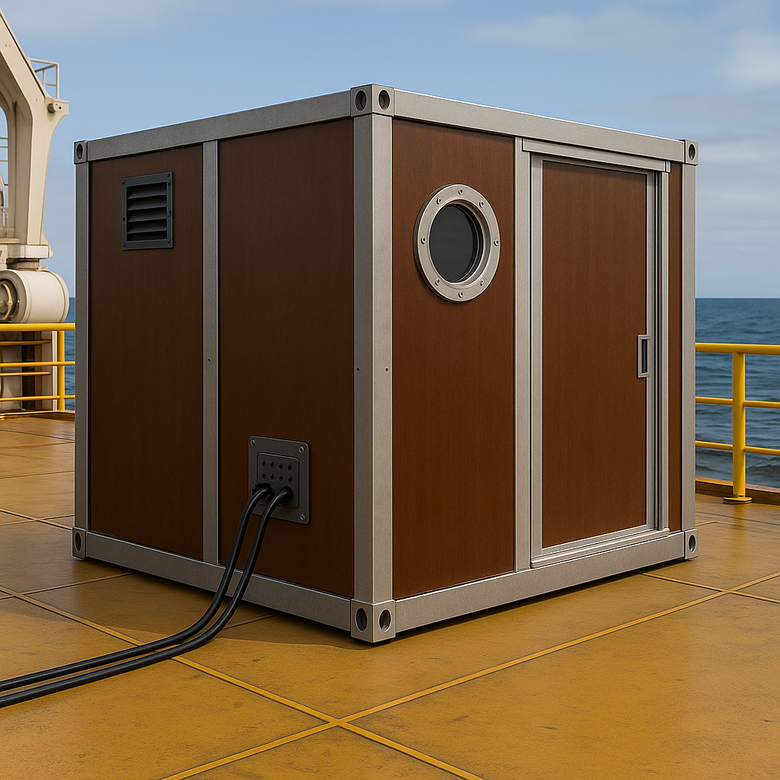

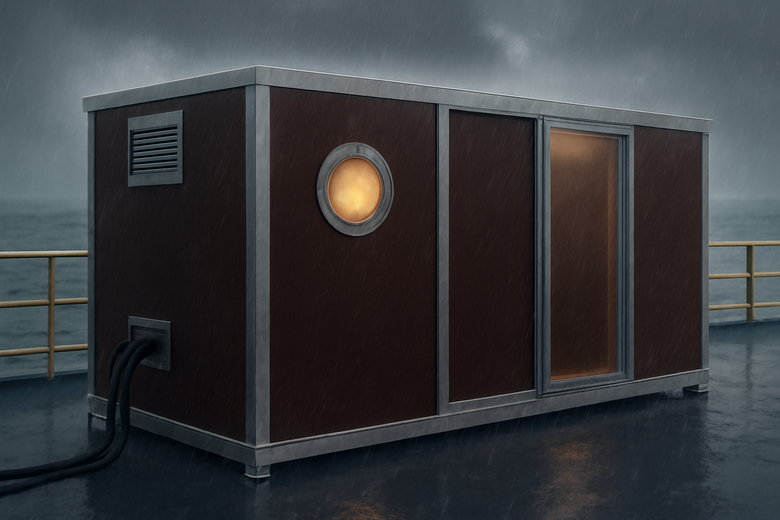

SnapBase Mobile Operations Centre

SnapBase Features

• Provides weather protection from near gale wind, heavy rain, wave splashes, and extra insulation can be fitted easily.
• Affordable cost.

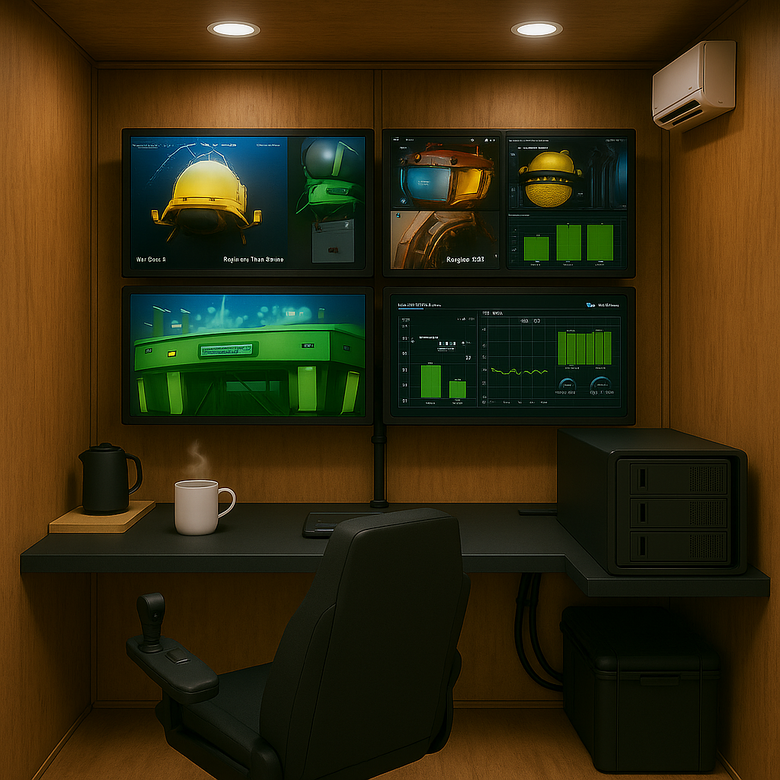

• Can be equipped almost as container based solution - climate control, monitors, server, toilet, operator chairs, etc.
• Can be transported in a van or truck and assembled in 30 minutes by 2 people.
• Can be fixed to the vessel deck with deck mounts and mounting brackets, twist locks, etc.

Mobile and affordable alternative to a shipping container operations base

SnapBase Specifications

Specification	Details
Assembly time	30 min with 2 people
Environment resistance	Withstands 30-knot winds and heavy rain
Inside space	just 3 cm less than external dimensions – see sizes below
Included in the Standard Version	Lights, ventilation system, table, chairs, indows, door, marine cable entry gland
Structure	Stainless steel square hollow sections with quick-release locks
Walls	6-9 mm marine plywood with optional insulation
Securing	To the vessel deck with deck mounts and mounting brackets, twist locks. To the ground using weights such as generators, pumping stations, etc., or using vehicle wheel load as ballast. Attachment to the vehicle’s tow hitch.
Сompliance	Suitable for nearshore and onshore operations Not suitable for offshore operations

SnapBase Sizes and Prices

Option	Length	Width	Height	Volume disassembled	Weight
Box	2.4 m	2.4 m	2.4 m	1.5-2 m3	500 kg
Double box	4.8 m	2.4 m	2.4 m	2.5-3 m3	1000 kg
10ft container size	3.05 m	2.44 m	2.59 m	1.5-2 m3	550 kg
20ft container size	6.06 m	2.44 m	2.59 m	2.5-3 m3	1000 kg
Custom

Custom sizes are offered according to your requirements.

Prices:
€6,000 for a Box and a 10ft container size.
€10,000 for a Double box size.
€11,000 for a 20ft container size.

Applicable taxes, delivery charges, and option costs will be added to the final price.

Options

Environment

• Additional insulation (e.g. fleece)
• Additional wind protection
• Additional wave protection

Comfort

• Climate control: air conditioner and/or heater
• Aircraft-style curtains
• Portable toilet

Workplaces

• Mounting points for customer equipment and monitors
• Extra fittings to secure items on walls and/or tables during movement
• Operator chairs with full adjustment options, ventilation, heating, armrests, and joystick mounts
• Extra tables
• Benches
• Folding chairs
• Starlink communication system
• Wifi
• Server mounts, servers, and compact video servers for footage capture
• Monitores

Mounts

• Securing to the vessel deck with deck mounts and mounting brackets, twist locks.
• Securing to the ground using weights such as generators, pumping stations, etc., or using vehicle wheel load as ballast.
• Attachment to the vehicle’s tow hitch.

External

• Deck mounting points
• Electric door drive
• Optional external lighting

Basics included in the Standard version

• Lights
• Ventilation system
• Table
• Basic chairs
• Indow
• Door
• Marine cable entry gland
