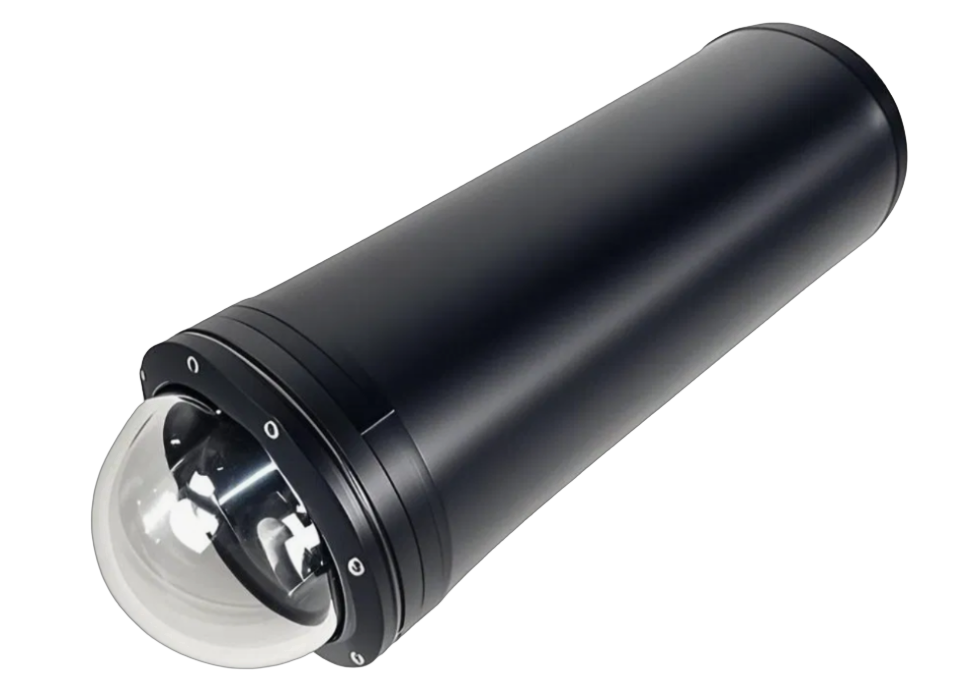

Cost-effective off-the-shelf aluminiium lightweight pressure housings rated for 400 m operational depth
Subsea Formula specializes in the design and manufacture of high-performance pressure housings (also known as watertight enclosures or pressure vessels) engineered for extreme subsea environments up to 6,000 m depth. This specific pressure housing is a cost-effective off-the-shelf solution.
| Specification | Details |
|---|---|
| Operating depth | 400 m (40 bar) |
| Dimensions | Ø110 mm × 250 mm L Ø90 mm × 200 mm L |
| Wall thickness | 3 mm |
| Sealing system | Single O-ring seal |

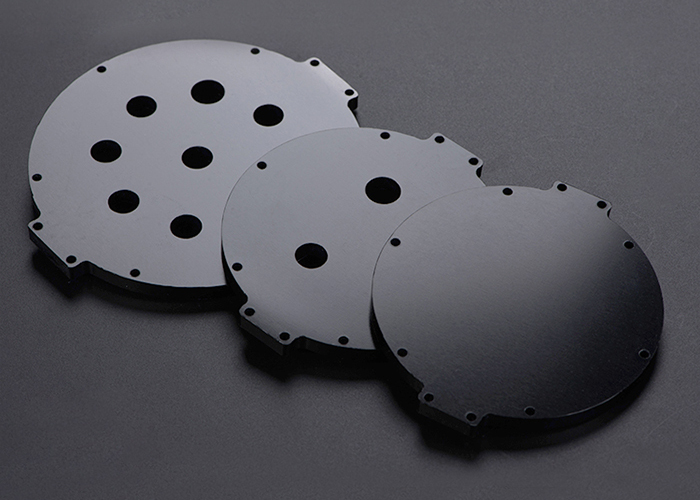

| Access method | Bolt‑circle end‑cap with O‑ring face seal |
| Construction material | Hard-anodized aluminum alloy |
| Electrical interfaces | Configurable connector options available |
| Operating temperature range | 0 °C to +38 °C (standard); extended ranges available upon request |
| Quality assurance | Each unit undergoes rigorous hydrostatic pressure testing in a hyperbaric test chamber |
Please let us know your requirements
