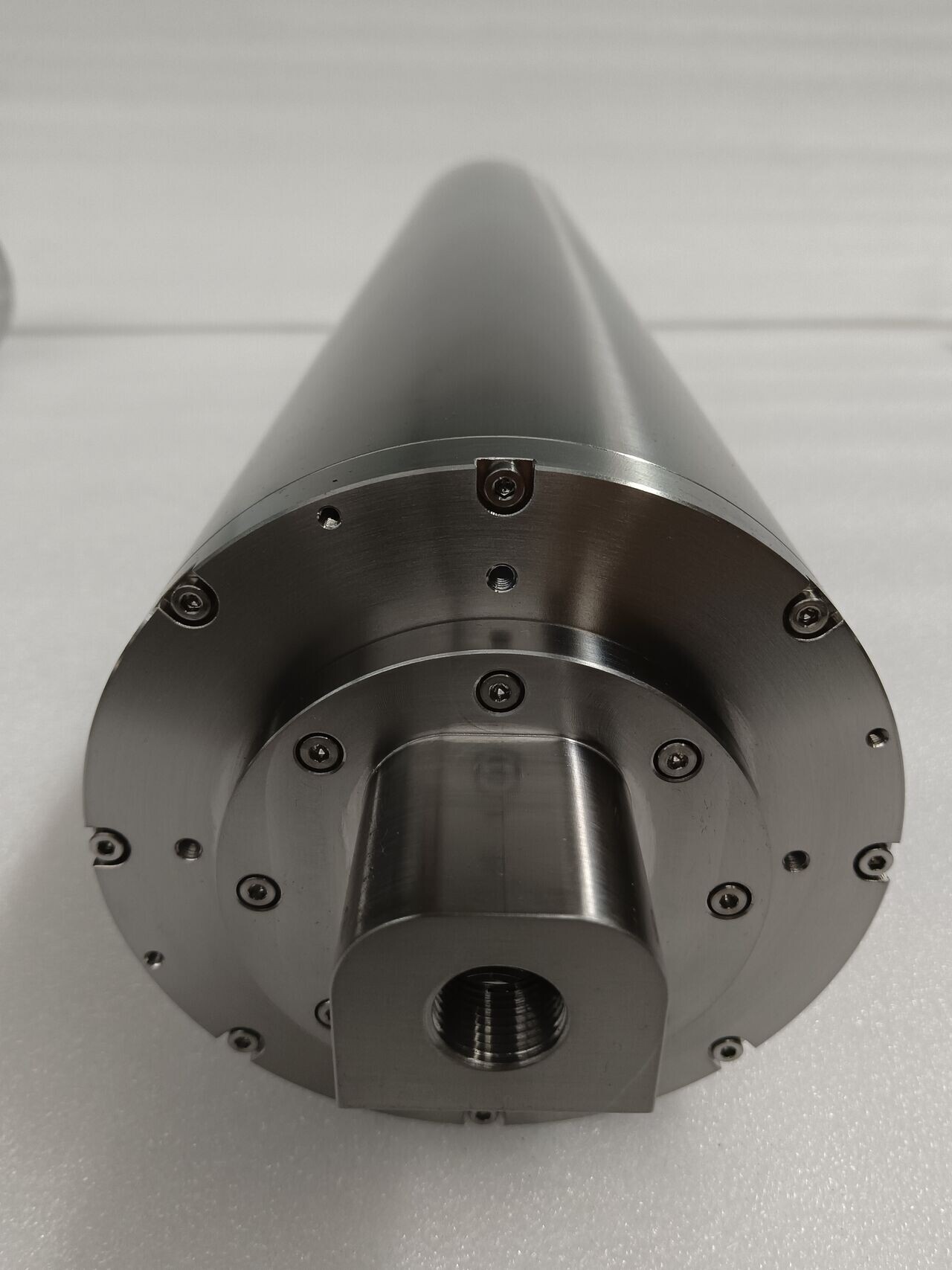

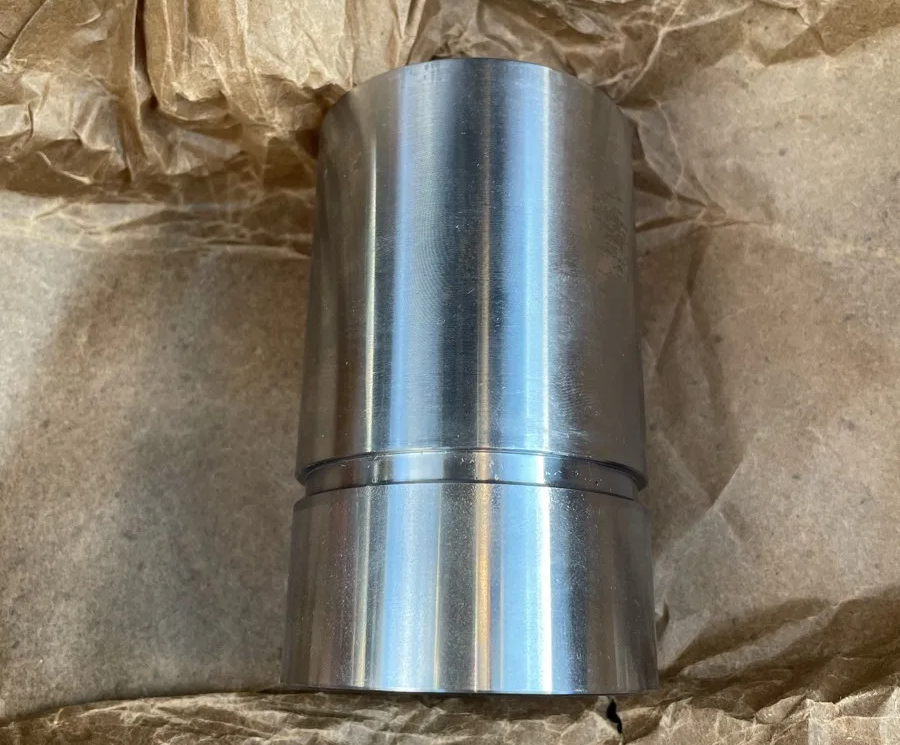

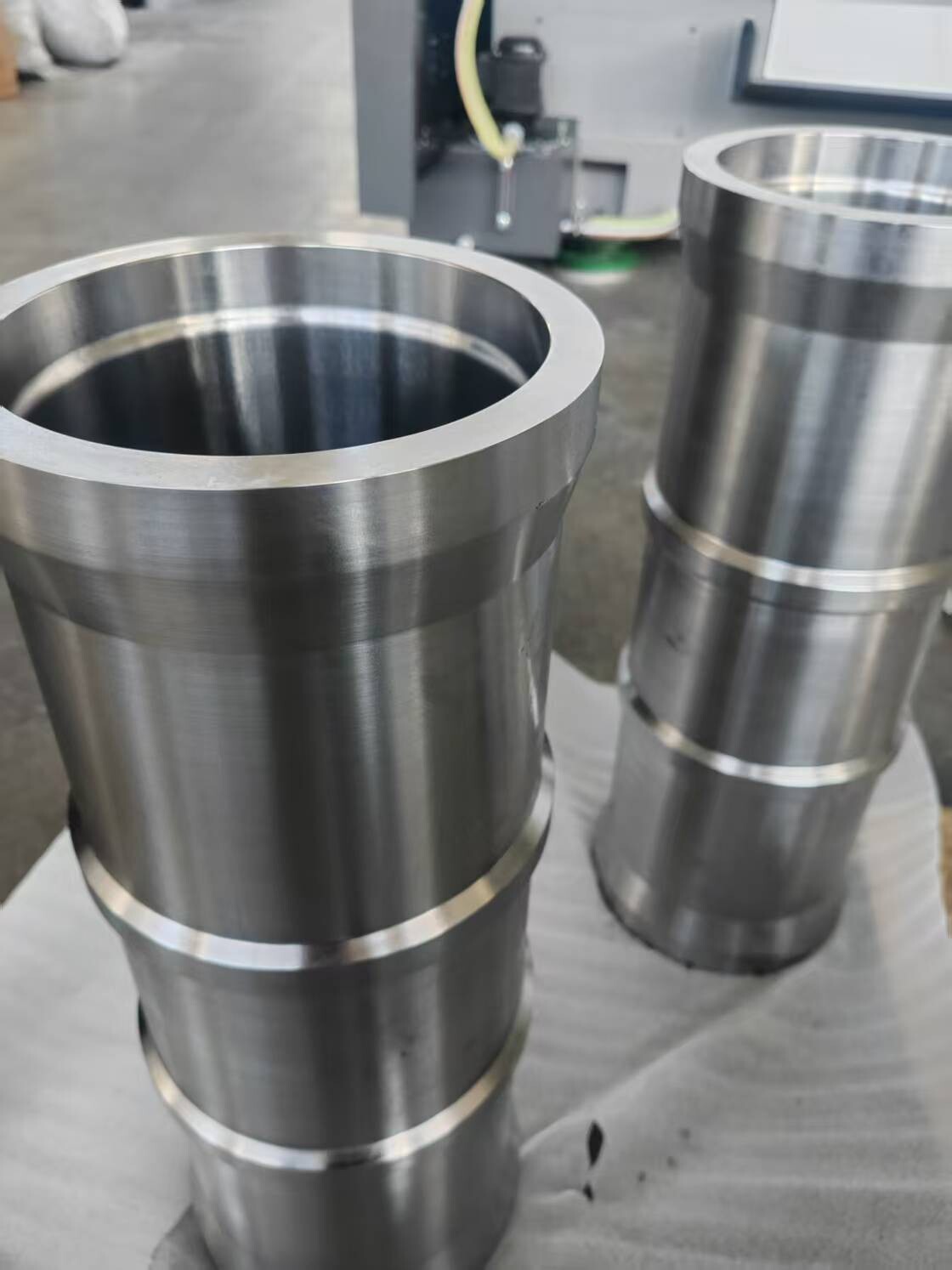

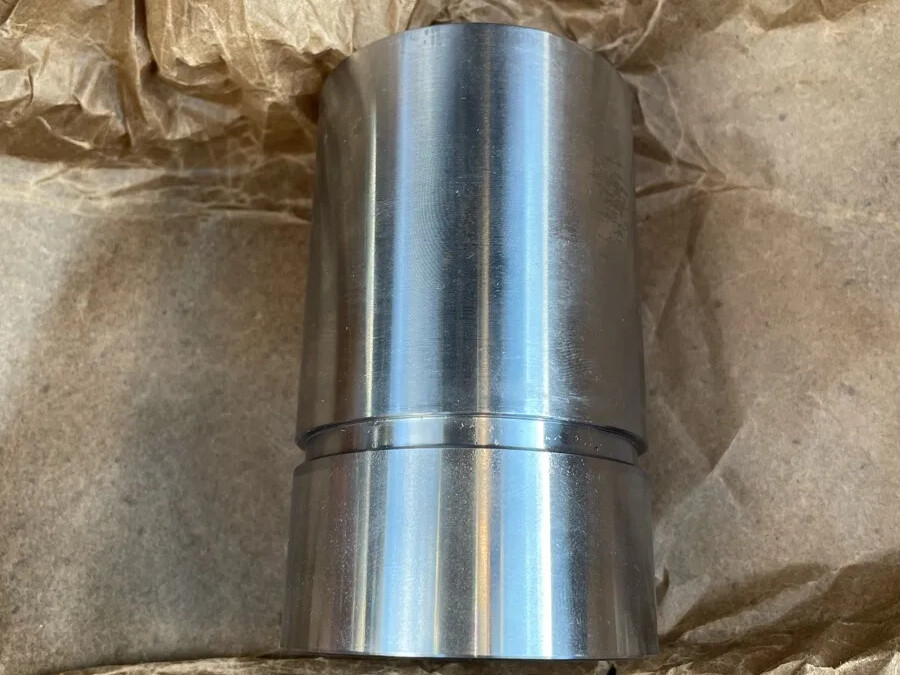

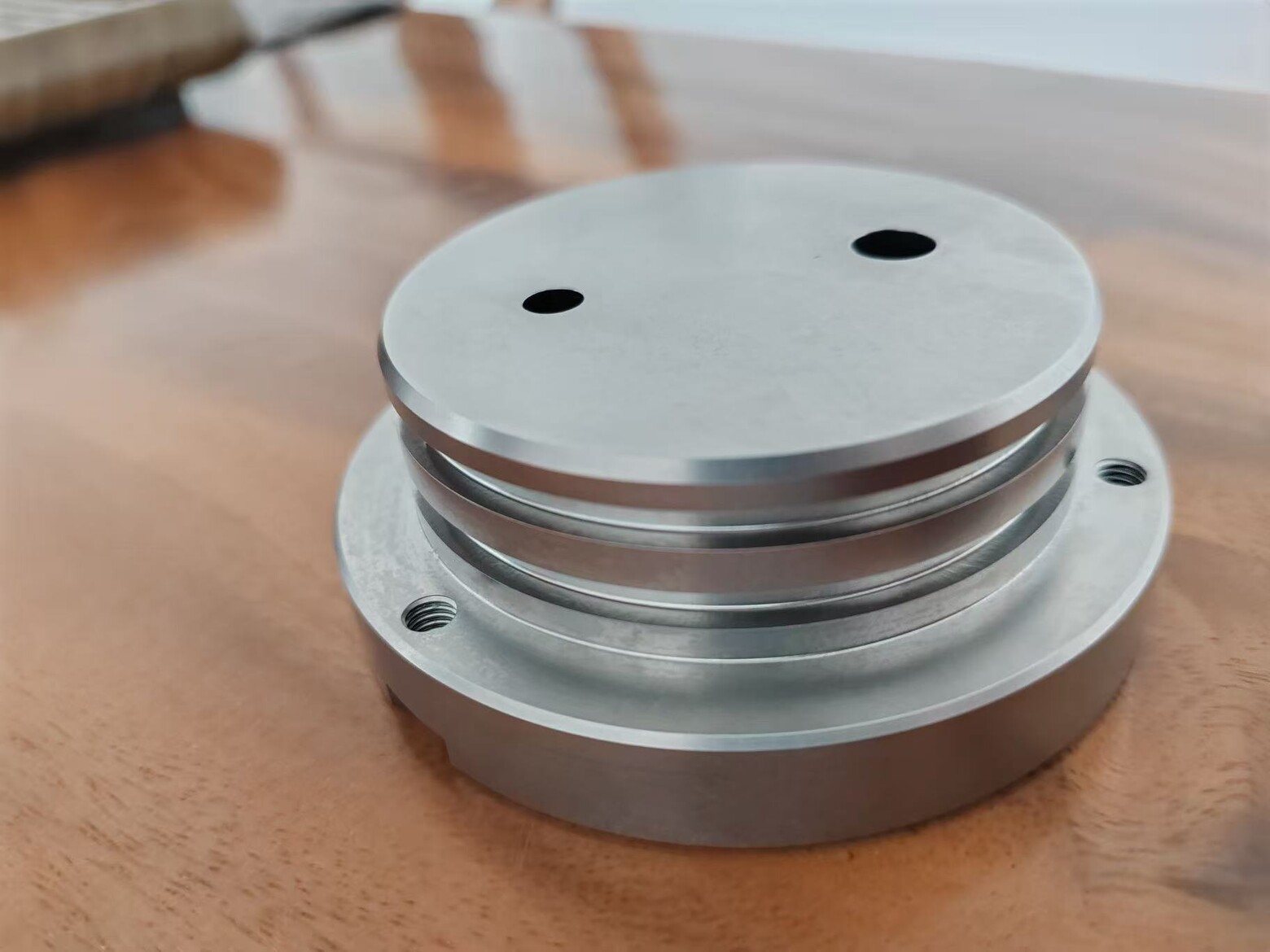

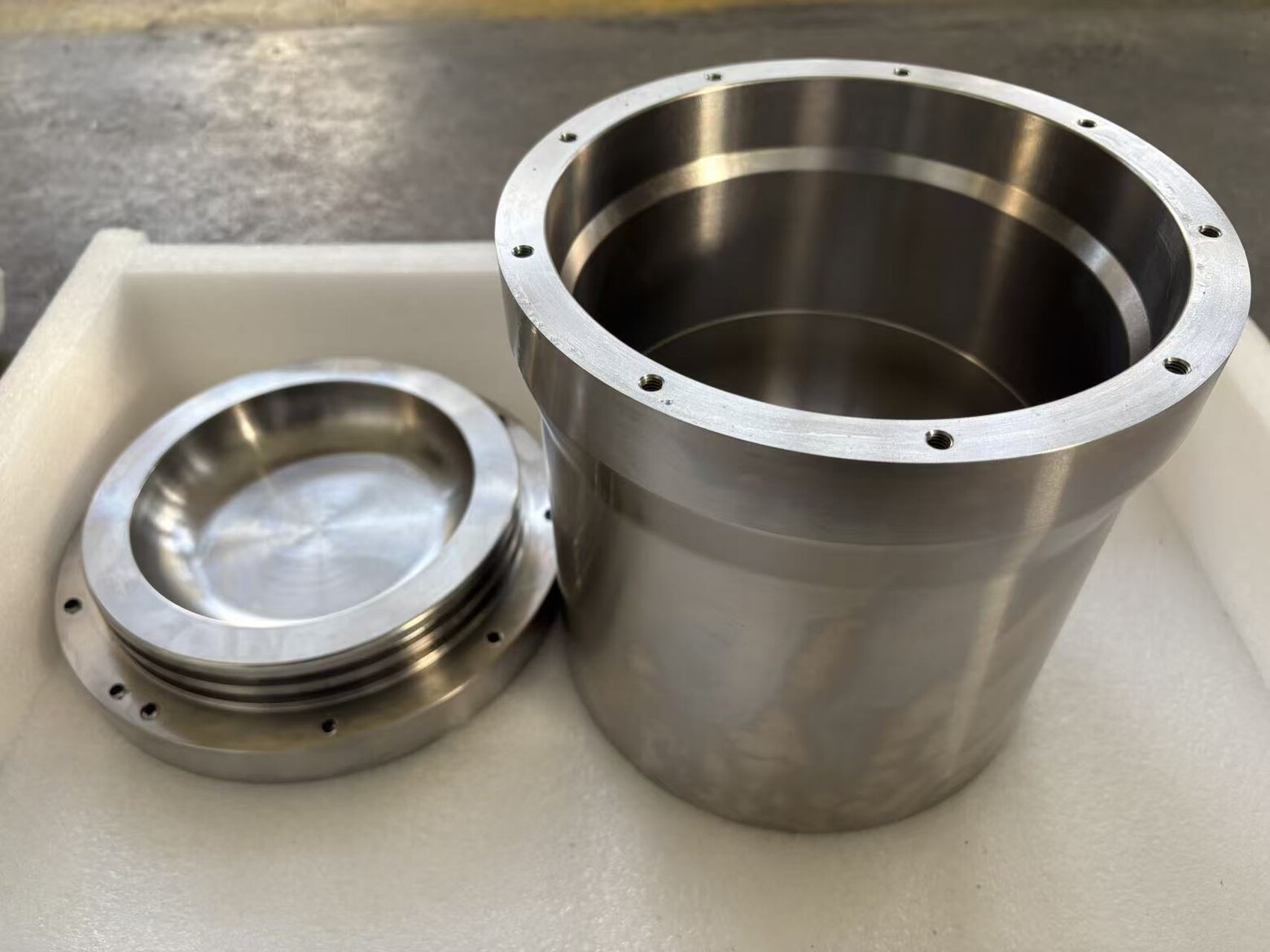

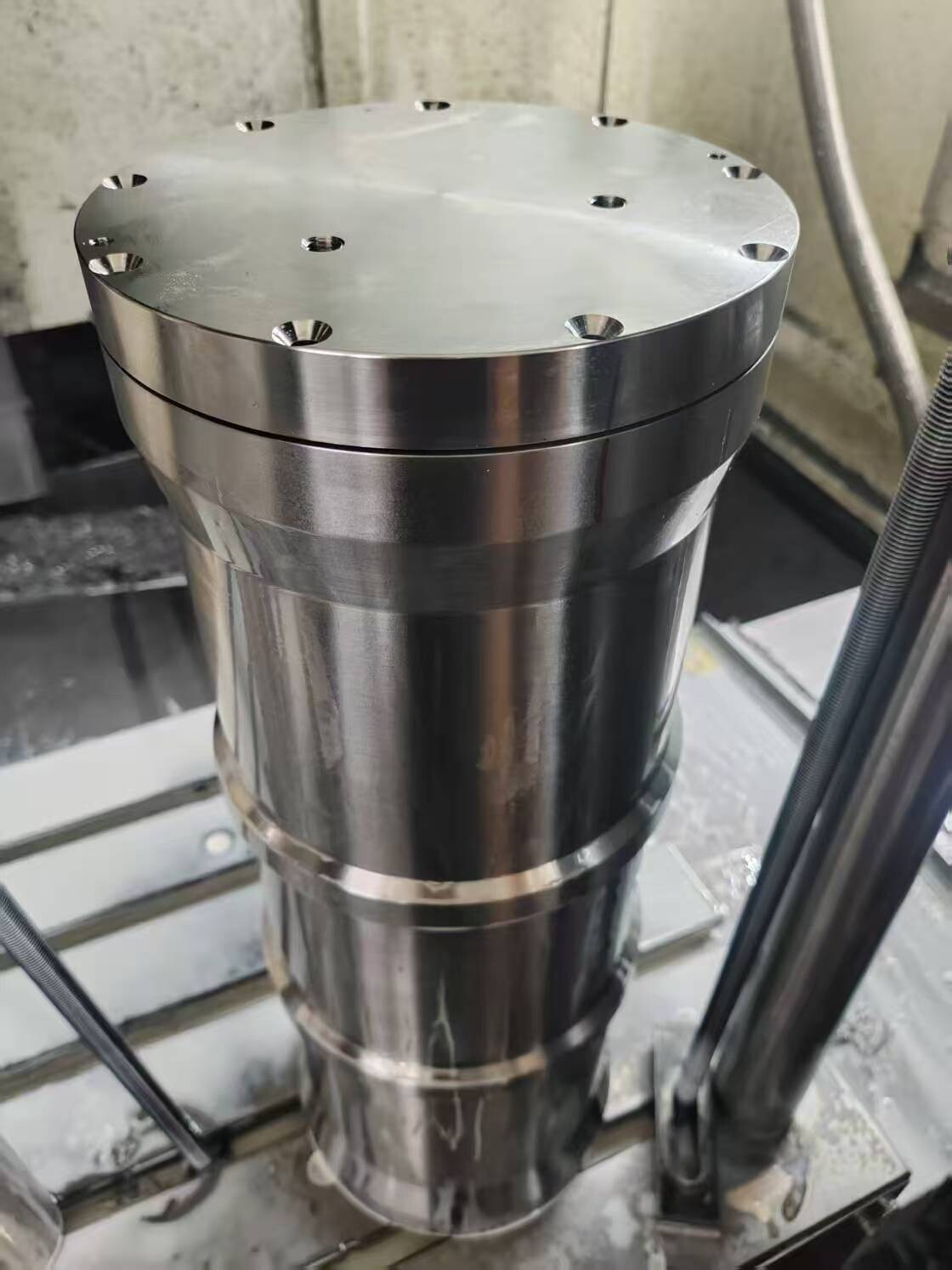

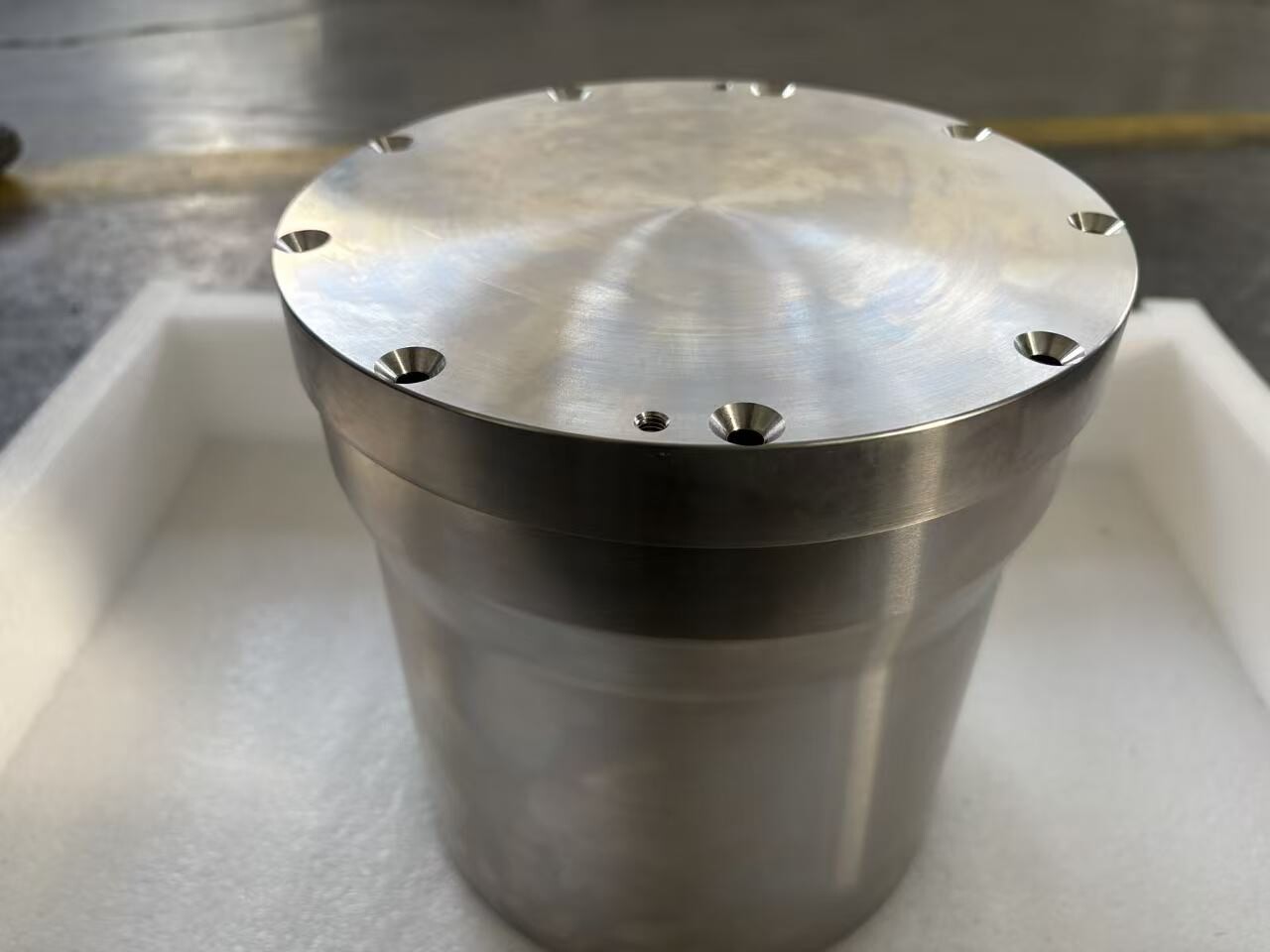

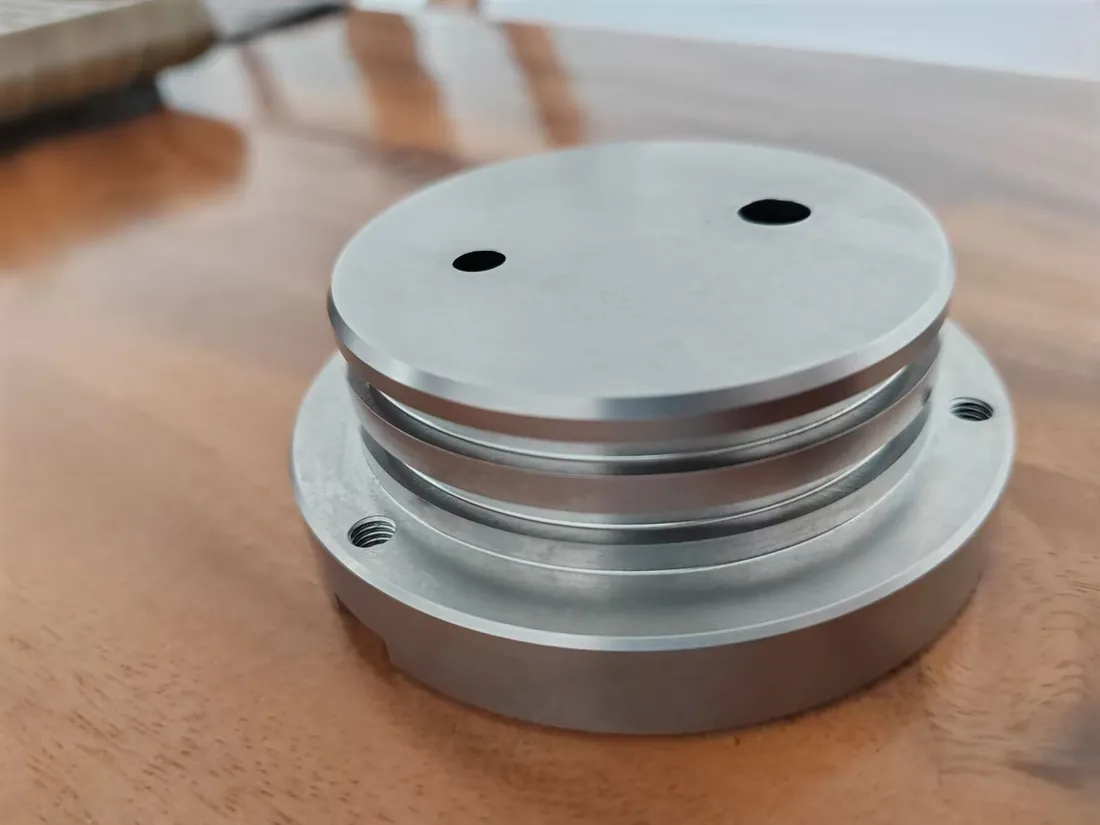

Professional pressure housings up to 500×200 mm for depths of 6,000 m, engineered to your specifications
Subsea Formula specialises in the design and manufacture of high-performance pressure housings (or watertight enclosures, pressure pods) engineered for extreme underwater environments up to 6,000 m depth.
| Specification | Details |
|---|---|
| Depth rating | Up to 6,000 m (subject to material selection and design verification) |
| External size | Outer diameter up to 200 mm; overall length up to 500 mm |
| Internal size | The wall thickness and internal volume are determined by the depth rating |
| Sealing | Single, dual, or triple bore O‑ring seals |
| Materials | Hard‑anodized aluminum, 316/316L stainless steel, or Grade 5 titanium (per requirement) |
| Connector options | Subsea bulkhead connectors and mating cable assemblies for power, signal, and optional fibre, available from SubConn, Glenair SeaKing, and Teledyne/Impulse; connector count, contact layout/size, and manufacturer configurable to requirements |
| Other features | Internal brackets, custom layout end caps |
| Closure mechanism | Plug cap |
| Operating temperature | 0 °C to +38 °C typical; wider ranges available per material/seal selection |
| Weight | Depends on the size and pressure rating |
| Testing | Every pressure housing is rigorously tested in the hyperbaric pressure chamber |
Our engineering team is pleased to offer comprehensive custom design services to develop pressure housings that precisely meet your specific requirements. We invite you to submit your technical specifications and project details for a detailed quotation.
Please let us know your requirements
