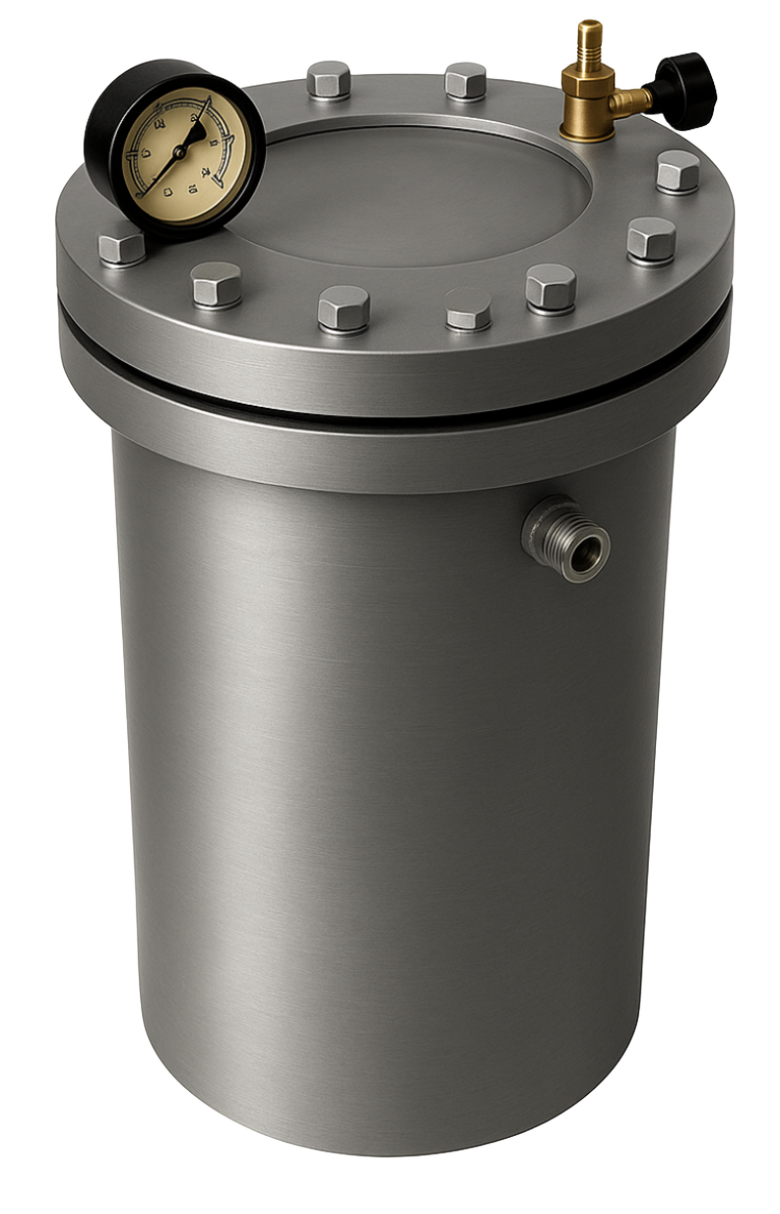

Test Pressure Chamber for 130m Depth

HC13 Features

• Low SWaP, works for on-site testing
• Quick setup and testing start
• Compliant with the EU Pressure Equipment Directive (PED). A statement of compliance will be provided. No involvement of a notified body is required for the operator.
• All testing equipment can be secured to the lid for easy loading and unloading or folded separately
• Lid lifting mechanism
• Multiple penetrations for tooling, electrical feed-throughs and pressure control hardware, camera and lighting
• Low maintenance requirements
• Long service life
• Vertical orientation minimises the floor footprint (horizontal orientation is also possible)

HC13 Specifications

Specification	Details
Pressure	1-13 bar (130 meters)
Test medium	Machine oil
Closure Time	3-5 min., bolting system
Pressurisation / de-pressurisation	about 1 min with a hand pump
Pressure control system	manometer and safety valve
Dwell time	up to 10 days
Seal Type	O Ring with PTFE back-up ring
Ports	1 fill/drain, 1 purge + customer specific
Options	protective box or screen, light, camera, custom tooling
Penetrations	Penetrations for tooling, electrical feed-throughs and pressure control hardware, camera and lighting as per customer’s requirements
Material of Construction	Carbon steel, stainless steels
Power consumption	Power is not required for test chamber operation; it may be needed for the customer’s equipment such as cameras, lights, tools, etc.
PED compliance	Compliant

HC13 700

Specification	Details
Bore diameter	340 mm
Bore depth	610 mm
Bore volume	55 litres
Size	370 x 370 x 700 mm
Weight	~ 140 kg

HC13 1320

Specification	Details
Bore diameter	340 mm
Bore depth	1270 mm
Bore volume	115 litres
Size	370 x 370 x 1320 mm
Weight	~ 160 kg

HC13 Custom Size and Pressure

Please let us know your requirements
